Control and monitoring of on-load tapchangers, incorporating functions for transformer paralleling, load drop compensation, runaway prevention, DER connections, network balancing services, Var control to name a few. Available to implement as hardware (relays) or software form.world possible.

Find out more
SuperTAPP SG

Overview

The SuperTAPP SG voltage control and monitoring relay provides market-leading transformer and tapchanger management services enabling you to manage network voltages of varying complexities, integrate Distributed Energy Resources (DERs), and deliver a cleaner, smarter grid.

Key features

  • Compatible Tapchanger Management

    Control, monitoring, and runaway prevention on all types of transformers, tapchangers and schemes

  • Voltage control to suit your needs

    Management of voltage control challenges brought on by complex schemes, fluctuating load power factors, distributed generation network configurations, and highly variable and flexible loads

  • Easy to implement and operate

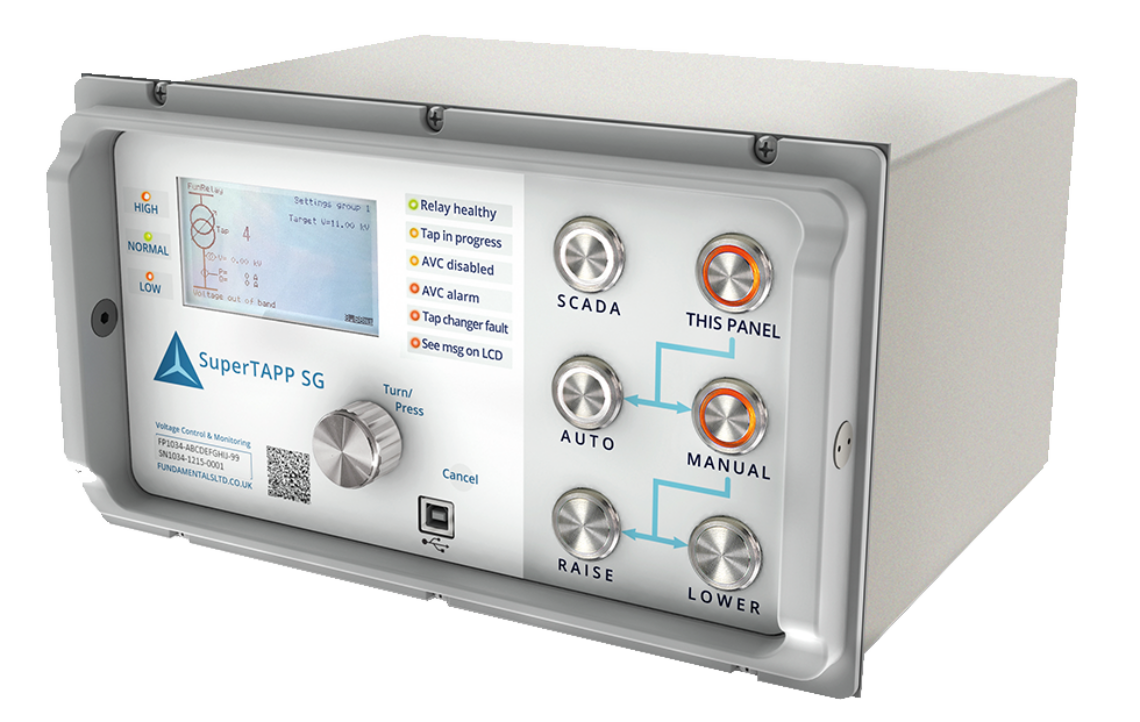

    Integrated control panel with status indication LEDs, LCD screen, direct control buttons to allow selection of control mode, and in certain conditions, direct operation of the tap changer

  • Visibility and control of your relay

    A proprietary PC software will be provided to you for the management of the SuperTAPP SG including settings, tapchanger operation, and relay and tapchanger diagnostics and historical data

  • Parallel operation

    The Enhanced Transformer Automatic Paralleling Package (TAPP) method allows for different transformer types to be paralleled across networks, providing an inherent fail-safe fallback.

  • Communications protocols to suit your needs

    Comprehensive SCADA protocols including DNP3, IEC 61850 and IEC 60870-5-103 for control and accurate analysis

Benefits

  • For network operations

    Flexibly operate parallel transformers across networks and reduce system losses while improving the security of your supply

  • For connection of generation

    Maximise voltage headroom and counteract the effects of voltage rise to reduce generator curtailment and connected costs for Distributed Generation

  • For asset management and replacement

    Deliver asset health indices at a lower cost and reduce the effects of tapchanger failure and tapchanger maintenance costs

  • For reinforcement projects

    Achieve reinforcement plans at a reduced cost with an easy to install relay and bespoke commissioning services

Technical Summary

The SuperTAPP SG offers an option to choose from three functions levels – Basic, Advanced and Ultimate. These functional levels define the voltage and current measurement and voltage control functionalities of the relay to suit a variety of application needs and requirements.

The SuperTAPP Basic SG provides elemental voltage control for standard applications including:

  • Tapchanger monitoring and runaway prevention
  • Measurement of one three-phase Voltage Transformer (VT) and one Current Transformer (CT)
  • Automatic Voltage Control (AVC) for 2-winding transformers
  • Compounding factors for:
    • Load/Line Drop Compensation (LDC)
    • Paralleling multiple transformers through:
      o Enhanced Transformer Advanced Paralleling Principle (TAPP)
      o Negative Reactance
      o True Circulating Current
      o Optional Master Follower
  • Optional SCADA communications to IEC 61850, DNP3, IEC 60870-5-103 and IEC 60870-5-104 protocols
  • Optional Ethernet communication
  • Optional transformer oil temperature measurement
  • Optional transformer winding temperature measurement

All Basic SG Functions plus:

  • Measurement of two three-phase VTs and 3 CTs with the option for up to 10 CTs
  • AVC for 3-winding transformers (double secondary transformers)
  • Use of additional current input for generation feeders, load correction; exclusion; inclusion, and interconnected substations
  • Optional transformer top oil and hotspot temperature estimation and forecasting
  • Optional transformer temperature management
  • Optional thermal alarms

All Advanced SG functions plus:

  • Autonomous algorithms for frequency and load-based voltage offsets
  • Frequency-based tripping of parallel transformers
  • Tap stagger
